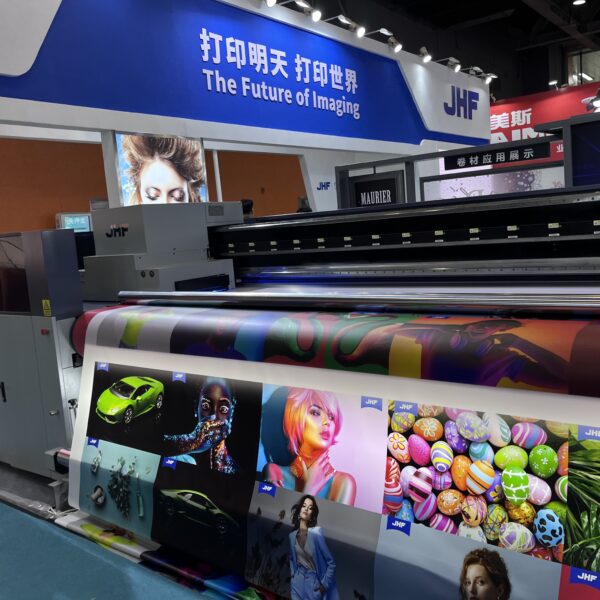

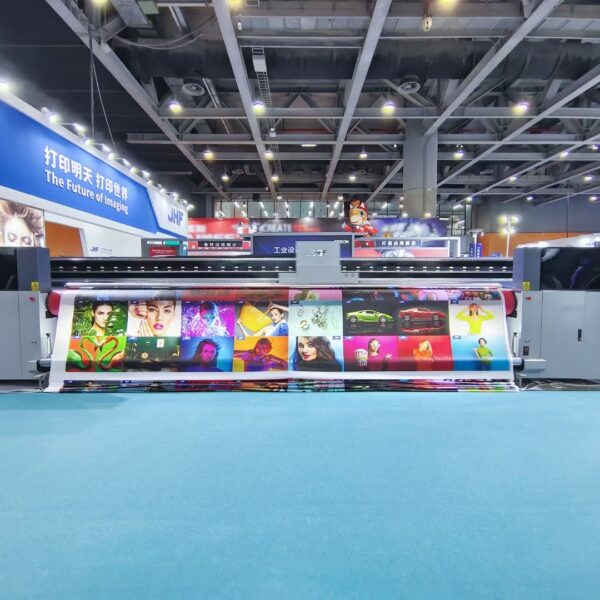

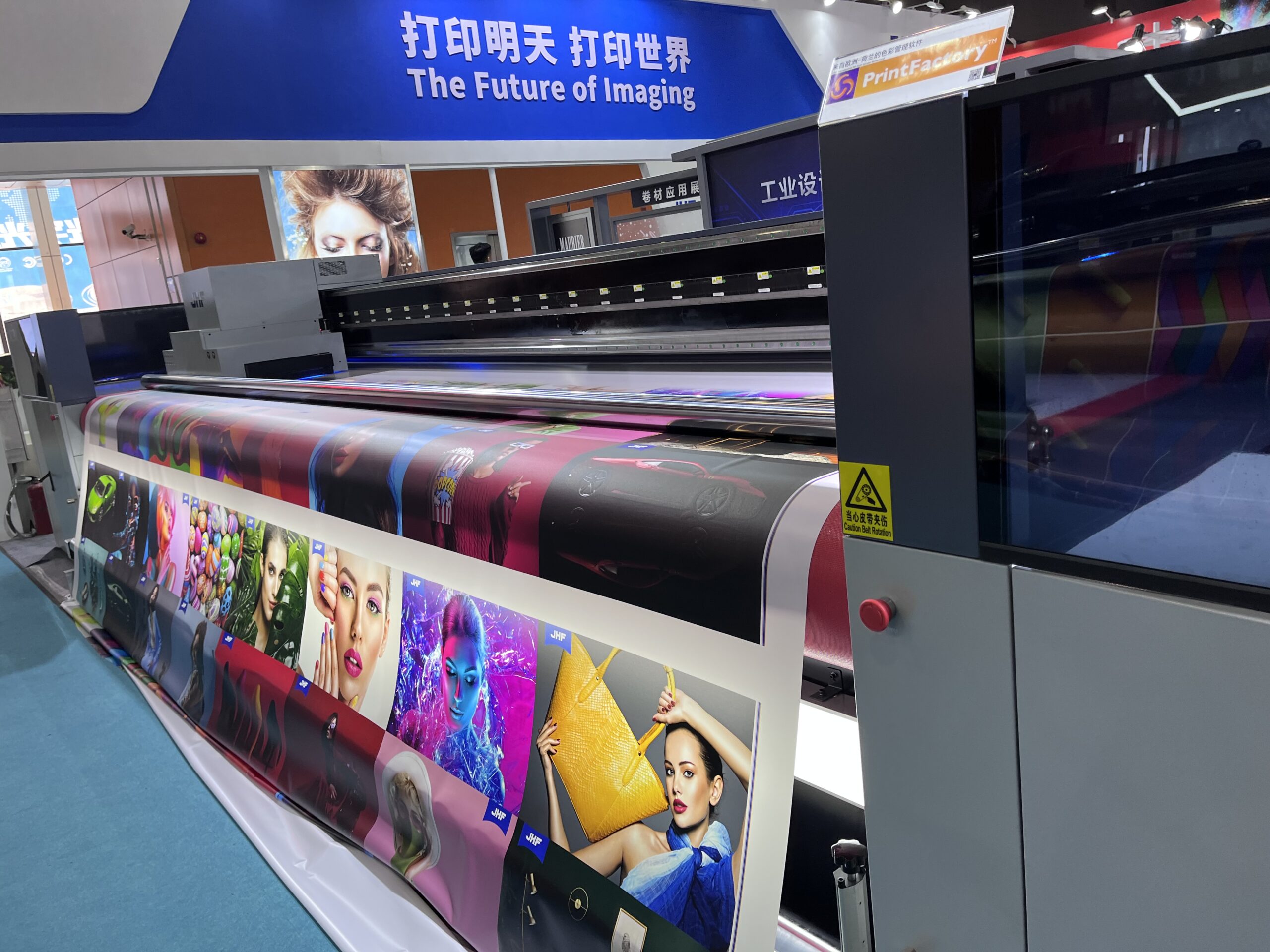

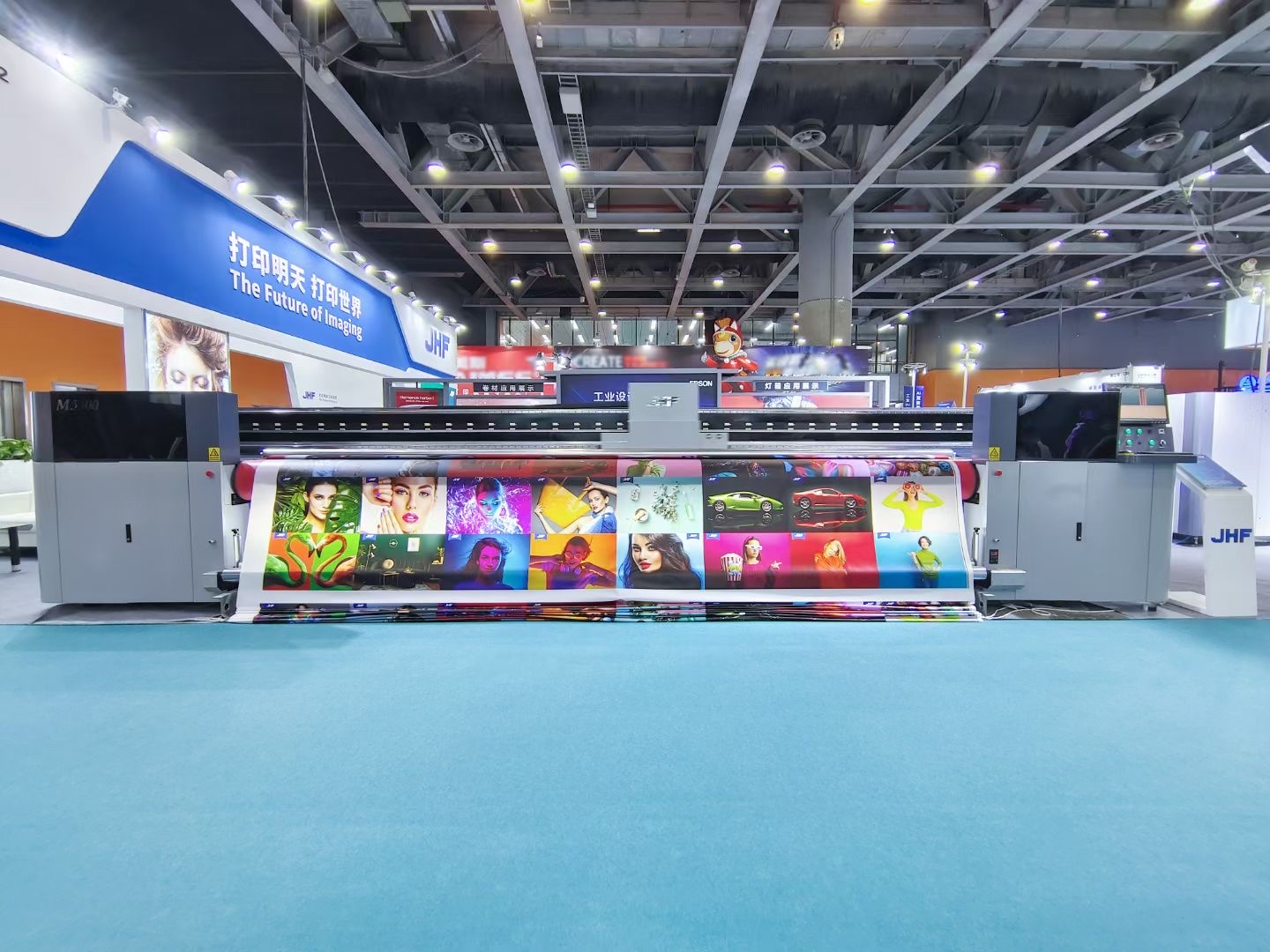

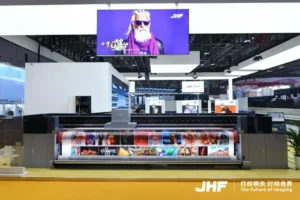

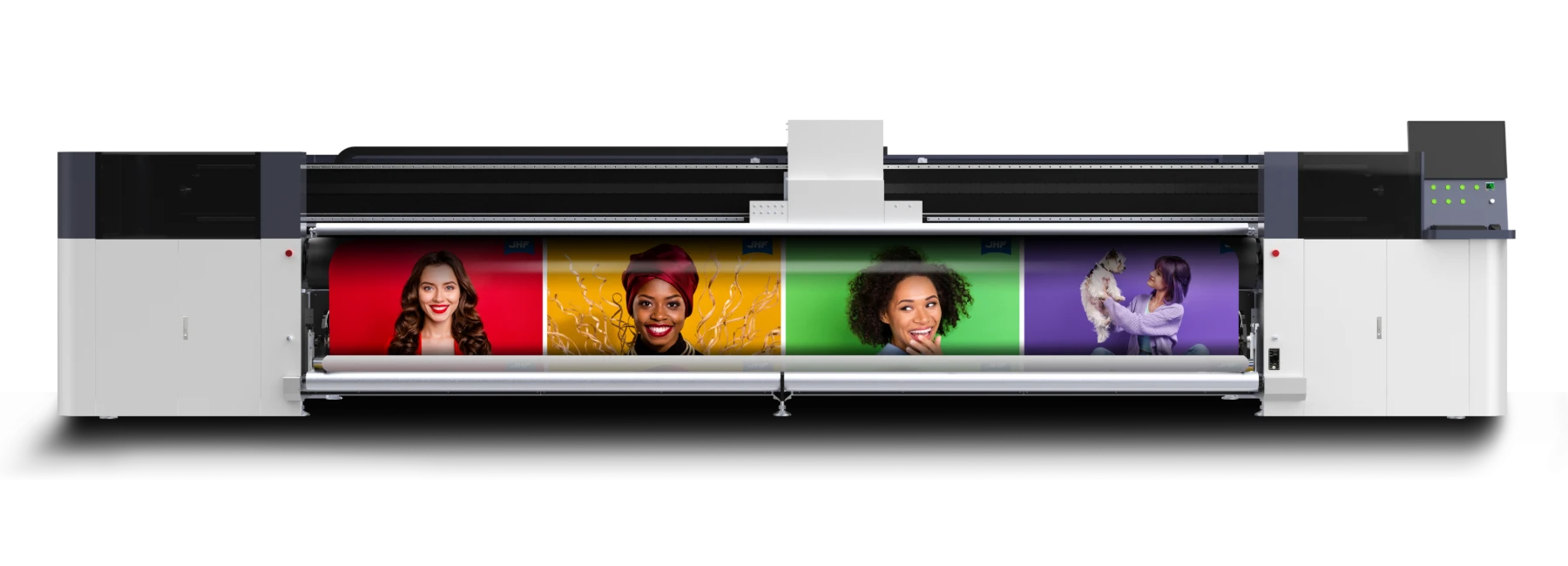

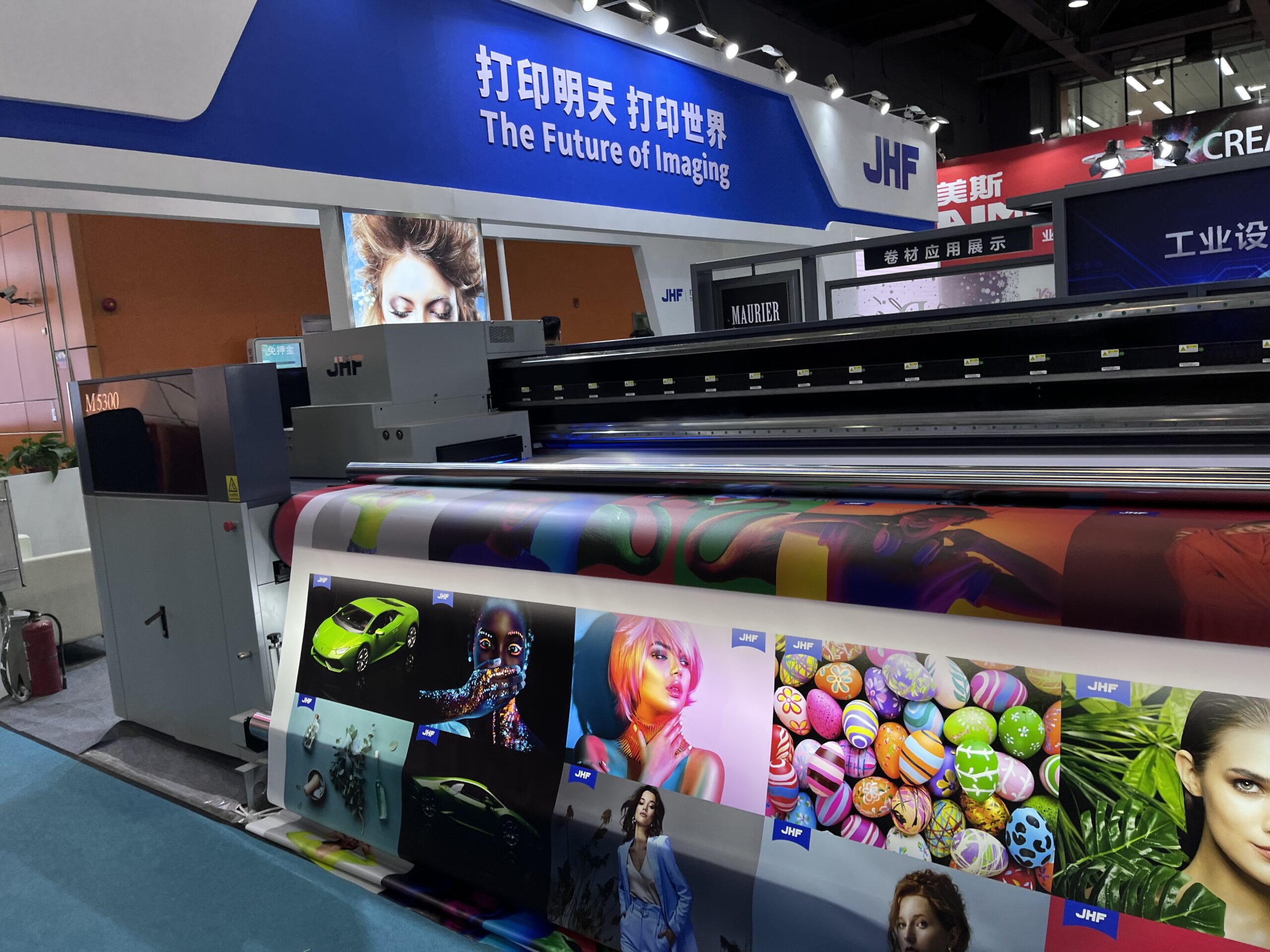

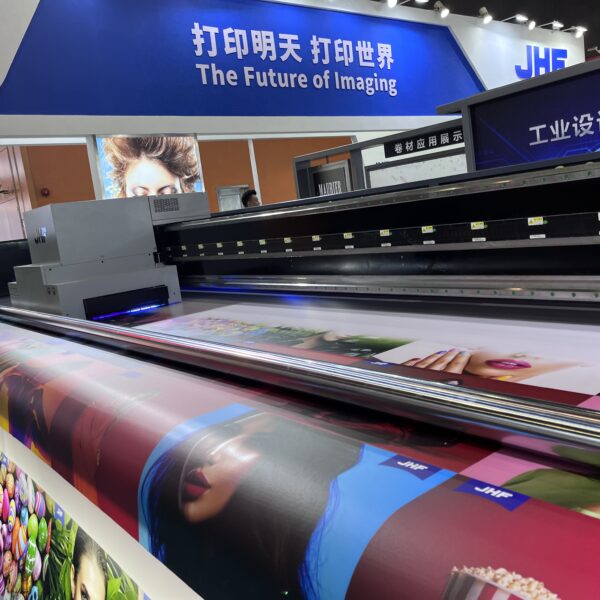

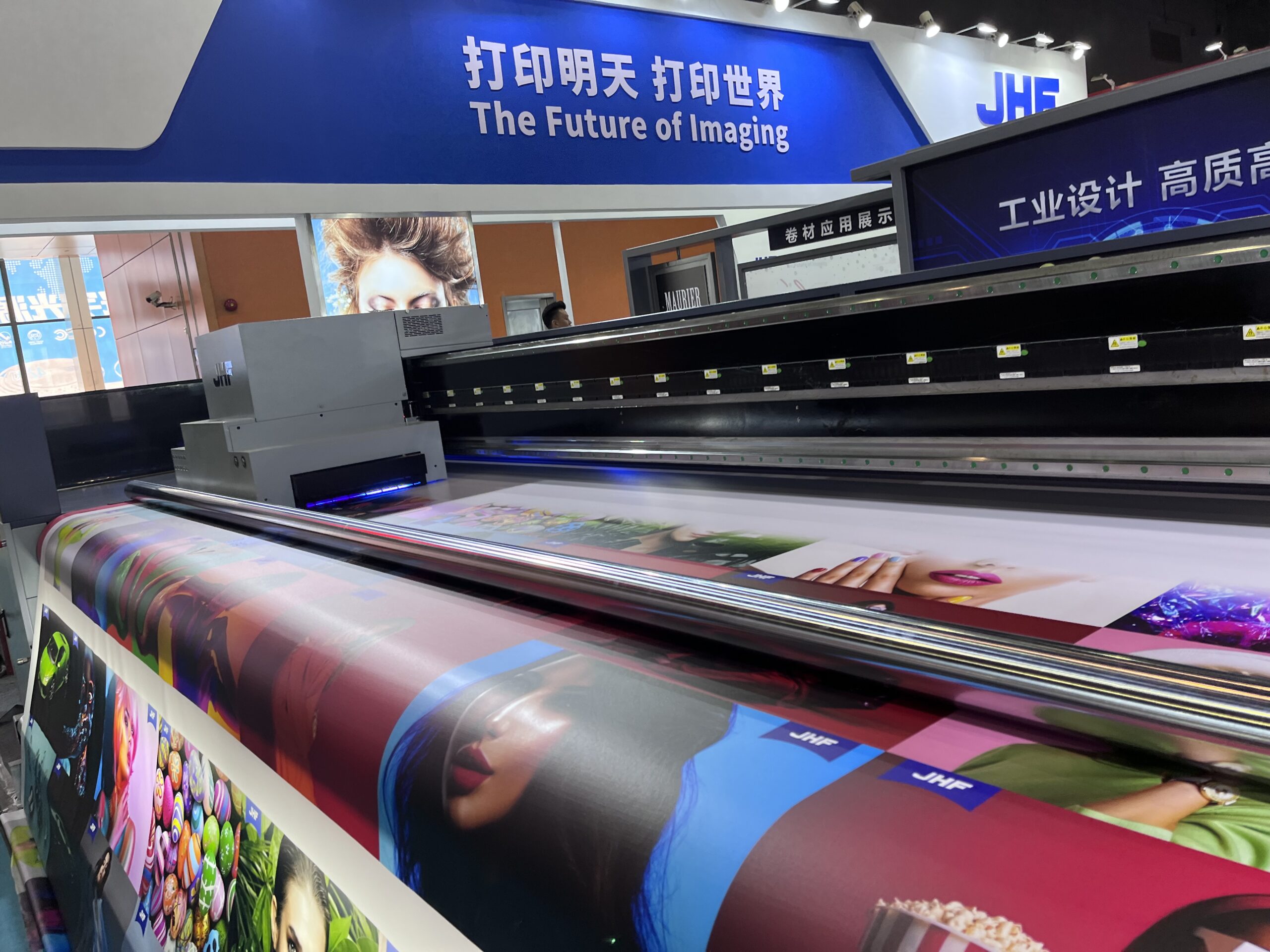

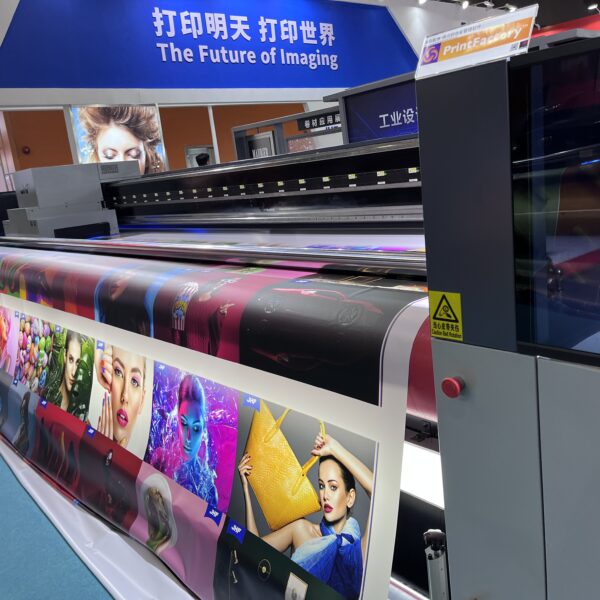

JHF M5300 Hybrid UV Printer
The M5300 is an ultra-wide hybrid printer independently developed by JHF, allowing seamless switching between rigid and flexible media. It is widely applicable to a variety of media to realize the output of multi scene printing solutions. M5300 is equipped with industrial heads to achieve high-speed output while bringing excellent printing accuracy and outstanding color expression. Wide format 5m and multi-rolls printing kit can eectively improves production efficiency and easily cope with various application scenarios, all in one design to save the cost. The front and rear double roll loading and taking up system makes it easier to load materials and make the working process simpler and more efficient. Its electronic negative pressure system with towline solution can effectively avoid motion faults, achieve high-precision control, and have better stability.
1、Precision manufacturing
High-precision metal grating with linear motor to ensure high-speed movement of printhead; constant pressure adsorption control system
ensures stable material adsorption and creates excellent quality on printed images.
Application, infinite possibilities

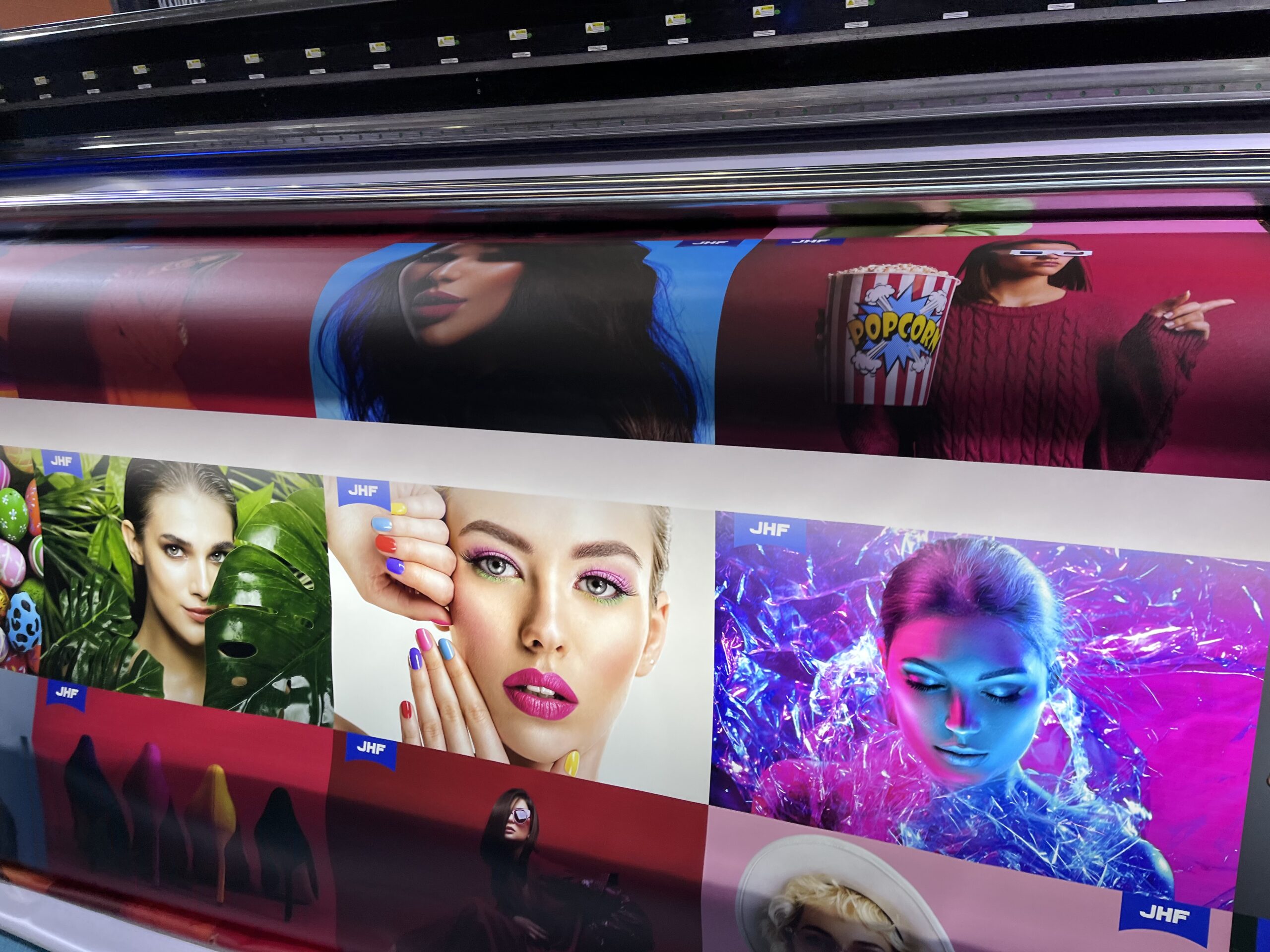

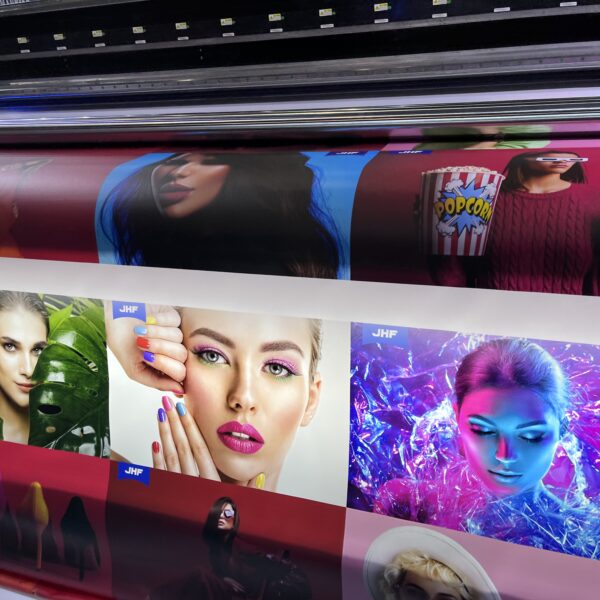

With super roll to roll UV printing function and wide range of applications. Three rolls of 1.5-meter-wide materials can be printed at the same time.
Excellent productivity
M5300 is equipped with 6 rows Konica or 4 rows Kyocera industrial heads, it can achieve high-speed output while bringing excellent printing accuracy and outstanding color expression, making the picture expressive and productivity beyond imagination.
Description
| Flexible Production Mode & Multi-Roll Simultaneous Printing
Supports simultaneous printing of three 1.5-meter wide rolls. The edge detection system accurately identifies the boundaries and width of multiple rolls, maximizing production efficiency. Intelligent multi-function carriage control Anti-collision system avoids the damage of the heads due to accidental factors. Electrostatic rod effectively remove the static electricity on the surface of the material and improve the printing quality of the product. |
 |
 |
Ultra stable performance
Metal grating + linear motor to ensure high-speed and stable operation of carriage; double guide rail + towline solution to ensure the stability of long-term operation. Stable adsorption The platform adopts constant pressure control technology to ensure stable adsorption of materials and printing accuracy. |
| Intelligent ink supply system
Stable sub ink tank temperature control system to ensure consistent ink properties in different environments. The whole machine adopts high-precision filter to ensure the quality of ink supply. A complete ink system is a powerful driving force to achieve stable and lasting output. Color management software RIP software Caldera or PrintFactory adopted to support many mainstream applications, with simple and convenient operation interface. |
 |
 |

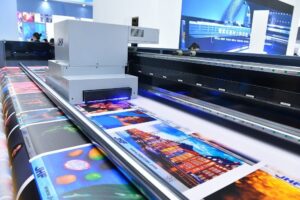

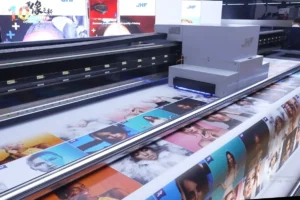

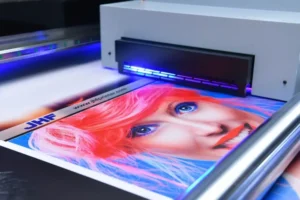

LED lamp curing solution
Using LED cold light source can effectively reduce energy consumption, be more environmental protection, and help sustainable development. The front and rear double roll loading and taking up system Makes it easier to load materials and make the working process simpler and more efficient. |
Technical Specifications
| Product Model | M5300 | |
| Maximum width | 5000mm | |
| Printing mode | Kyocera: 2ROW
High-speed mode 300×1800dpi 230m²/h; Production mode 600×1200 dpi 180m²/h; Fine mode 600×1800 dpi 120m²/h; Ultra-fine mode 1200×1200dpi 95m²/h |
Konica:
High-speed mode 362×1080dpi 400m²/h; Production mode 726×720dpi 320m²/h; Fine mode 726×1080dpi 230m²/h; Ultra-fine mode 726×1440dpi 180m²/h |
| Ink type | UV ink | |
| Ink color | C, M, Y, K, Lc, Lm, W | |
| RIP software | Caldera | |
| Control software | JHF Printer | |
| Environmental requirements | Temperature 18~28℃, humidity 40%~60% | |
| Machine power supply | Three-phase 380V/12KW | |
| Machine size | Length 8050mm × Width 2170mm × Height 1840mm | |
| Machine weight | 5500kg | |
