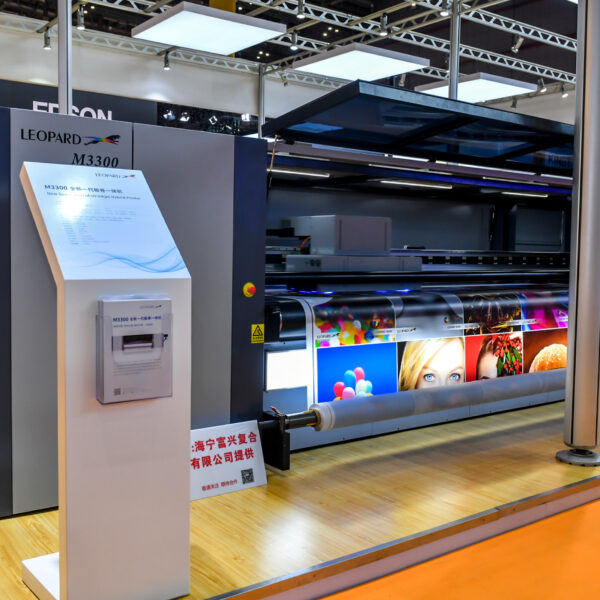

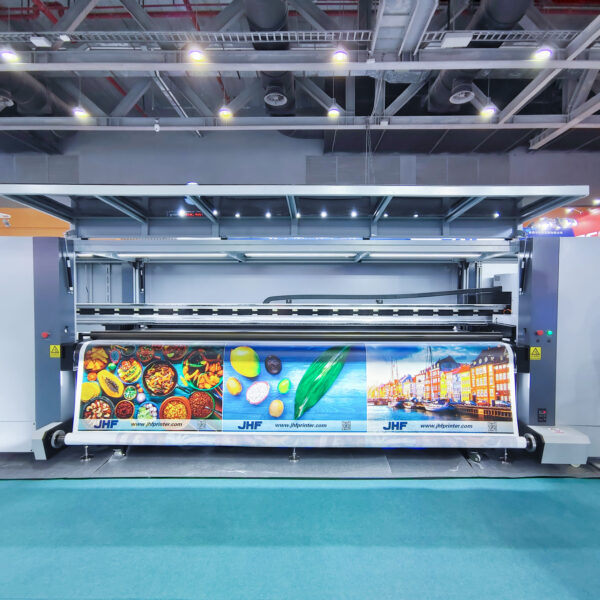

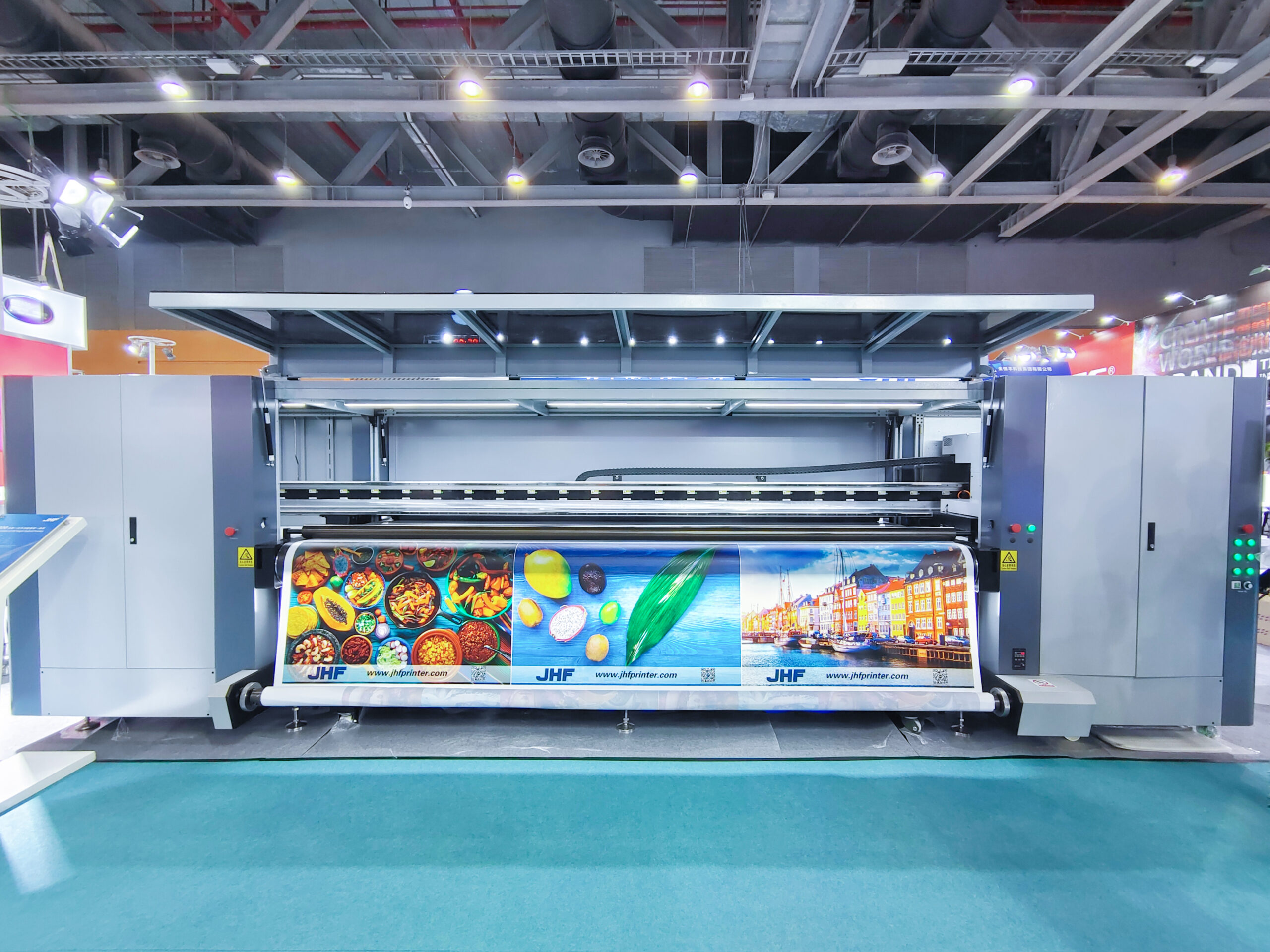

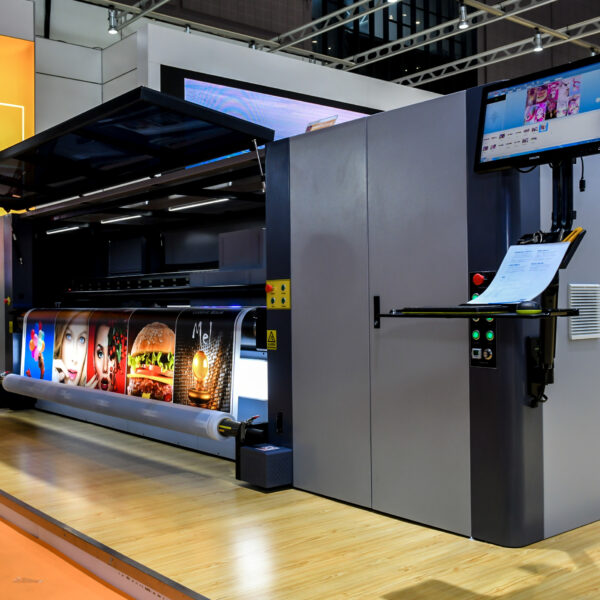

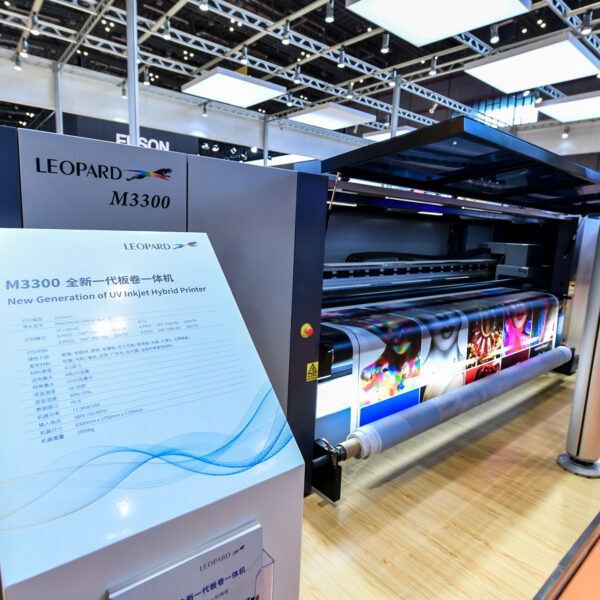

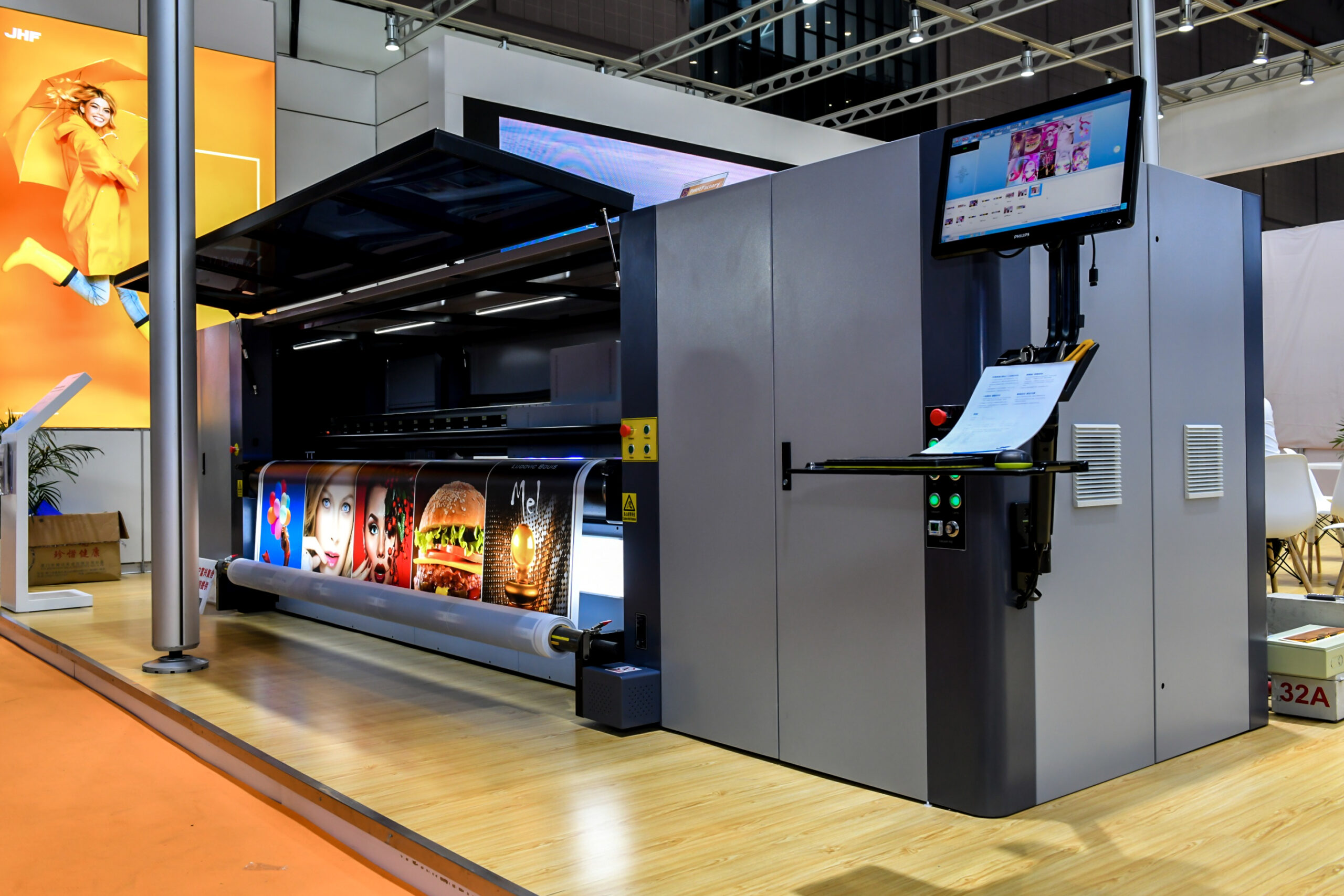

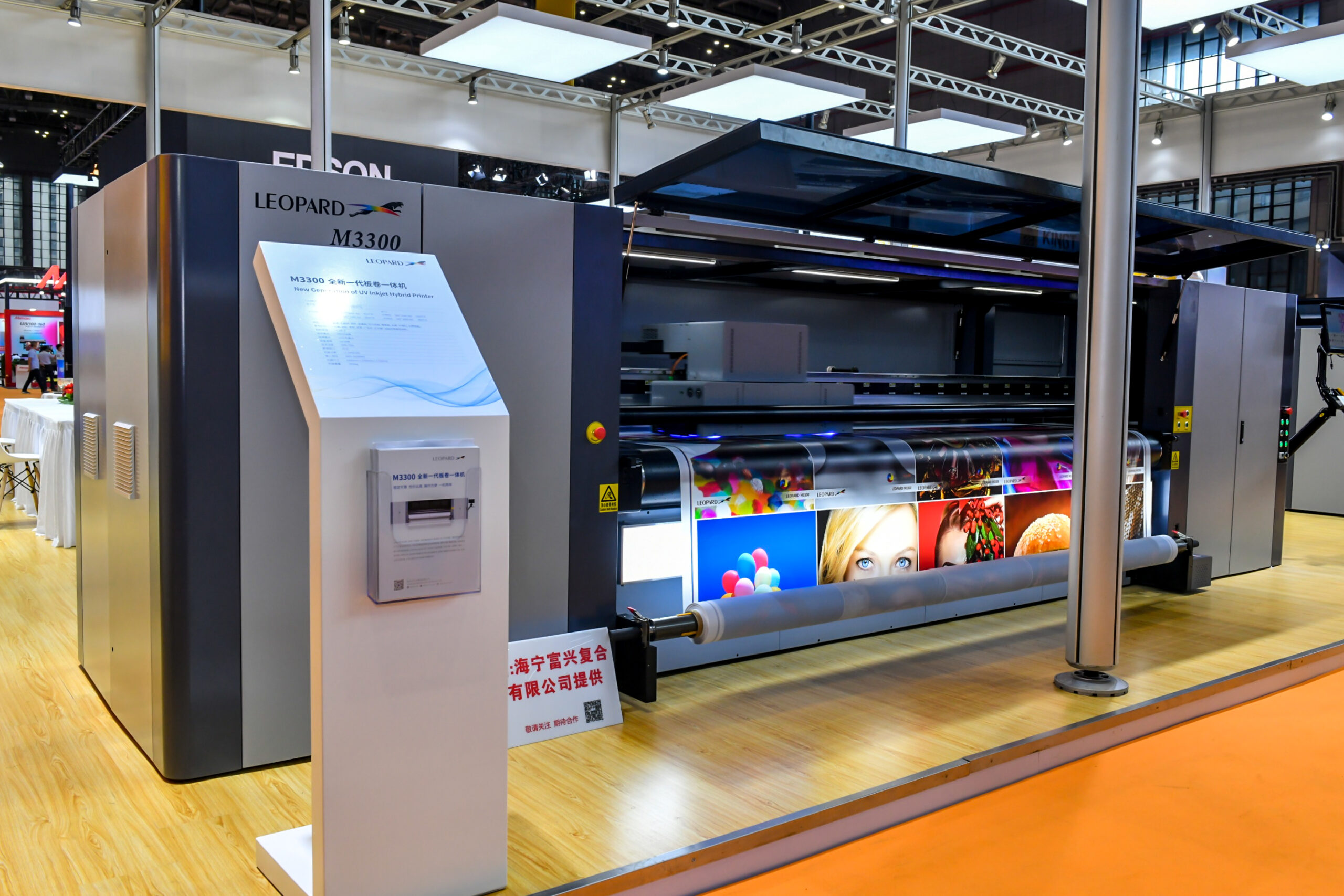

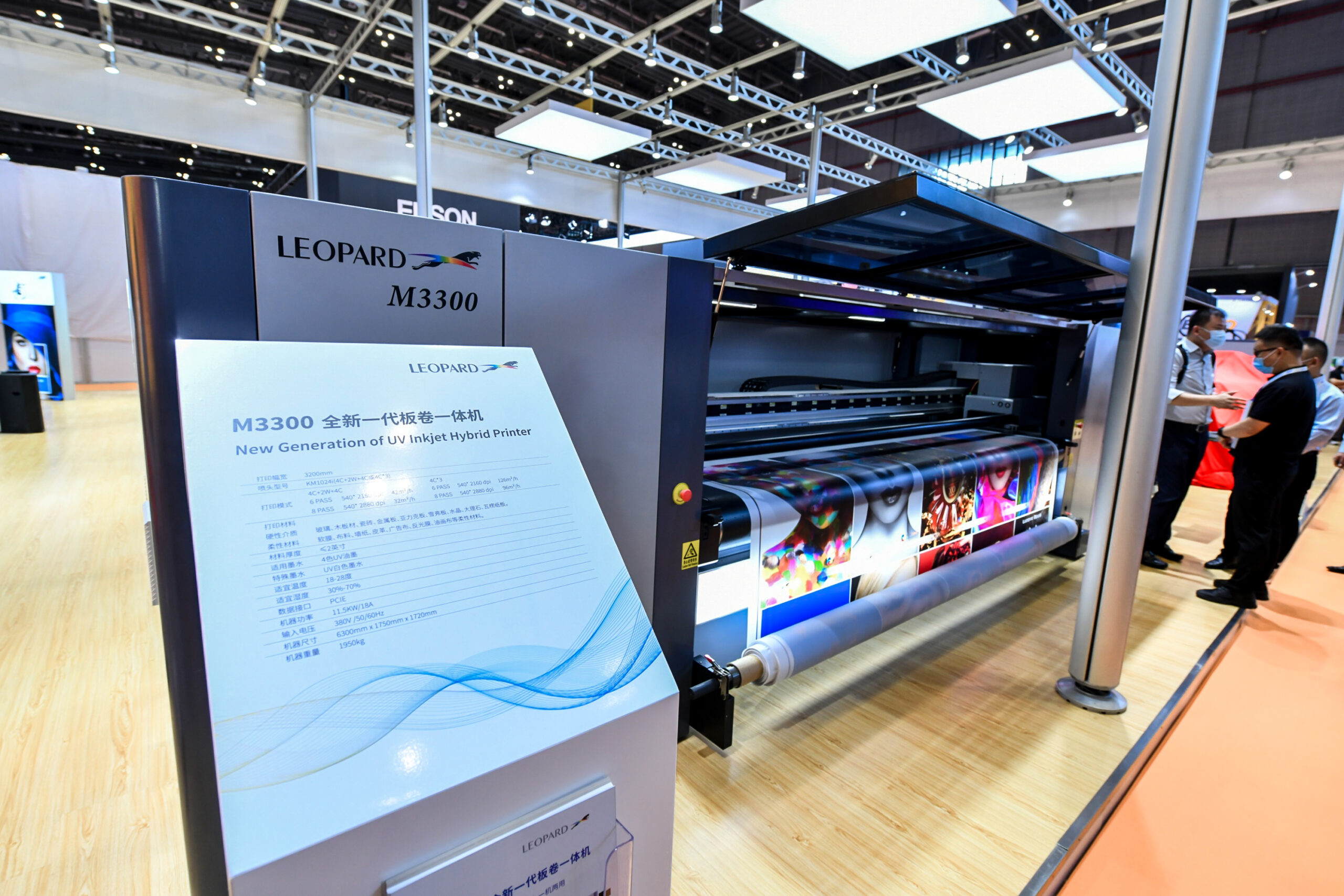

JHF M3300 Hybrid UV Printer
M3300 is a new generation of multi-functional hybrid printer featured with rigid and rolled UV printing. It is widely applicable to a variety of media and helps users develop a broader market. It’s industrial printhead brings excellent accuracy and gorgeous colors, making the picture expressive beyond imagination. Towline solution can effectively reduce motion faults and have better stability. Automatic detection of media thickness greatly improved user’s experience. The excellent performance and compatibility can help you greatly increase the instant production capacity, broaden the scope of business applications and stand out in the fierce market competition.
Precision Manufacturing

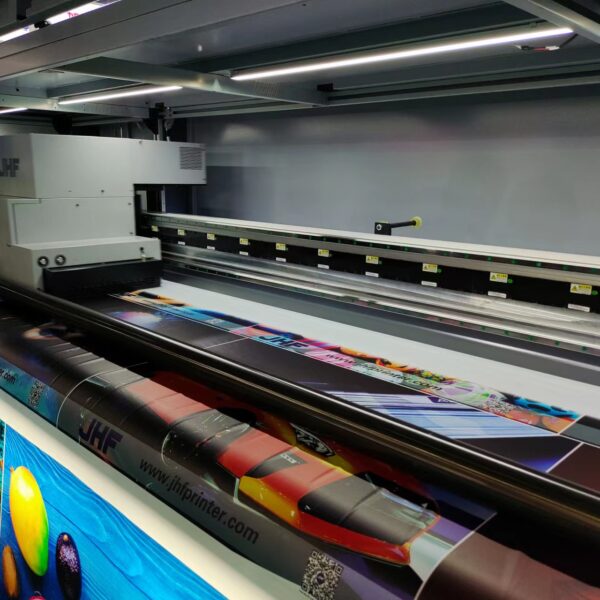

High-precision metal grating with linear motor to ensure high-speed movement of printhead; constant pressure adsorption control system ensures stable material adsorption and creates excellent quality on printed images.
Application, infinite possibilities

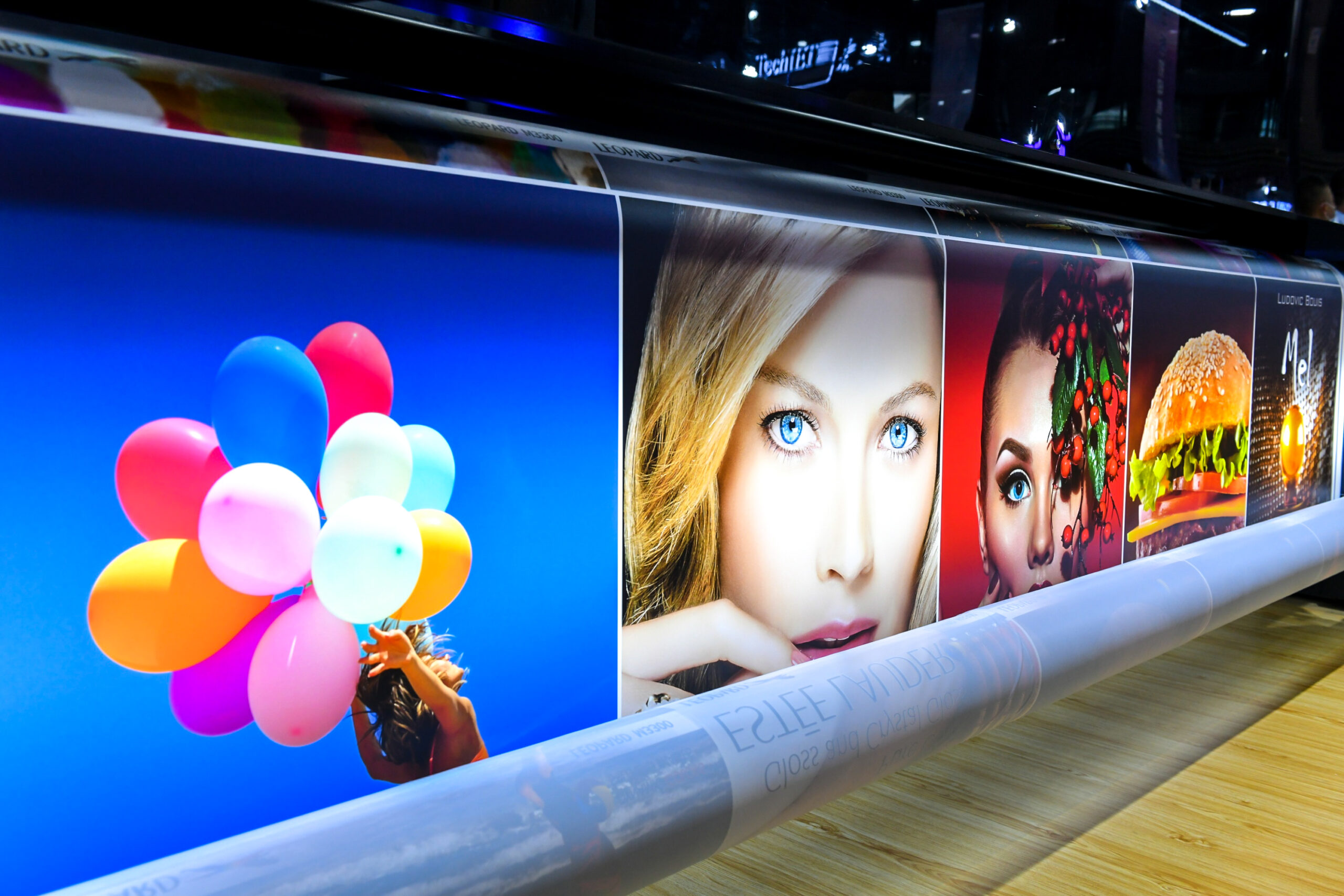

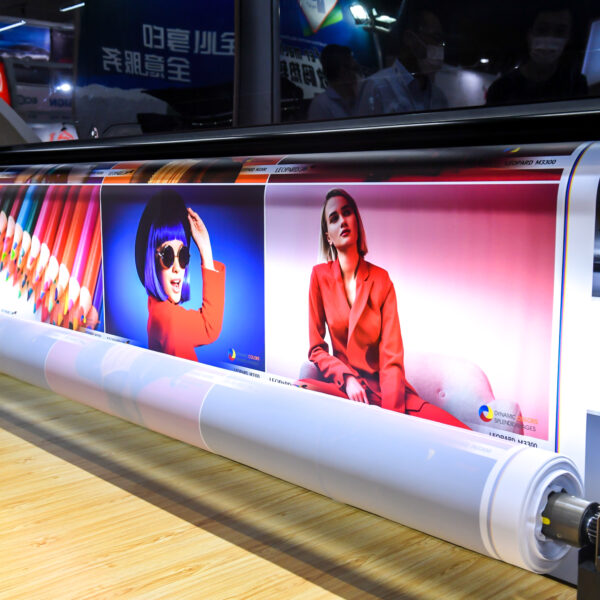

UV printing can be perfectly applied to flexible materials such as banner,
flexible film, 3P cloth and rigid materials such as PVC foam board, acrylic board, and wood board, etc.
Extraordinary value
M3300 Texture Printing: Perfectly showcases the visual beauty of three-dimensional embossing with distinct layers and a realistic tactile experience. It offers flexible printing of different stacking thicknesses to meet individual needs, suitable for high-end art reproduction, custom decorative artwork, and exhibition hall decoration.
Description
| Switchable feeding system

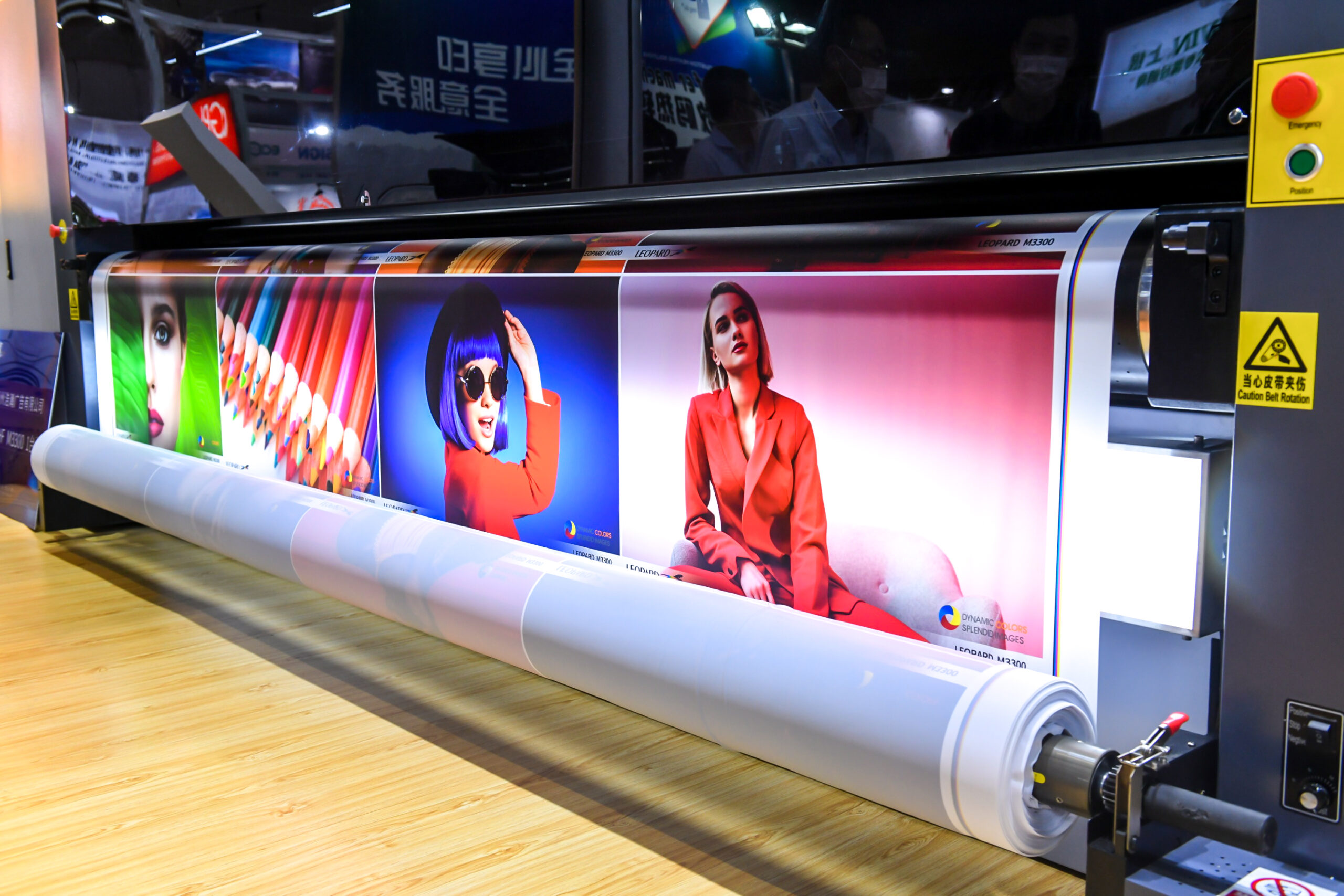

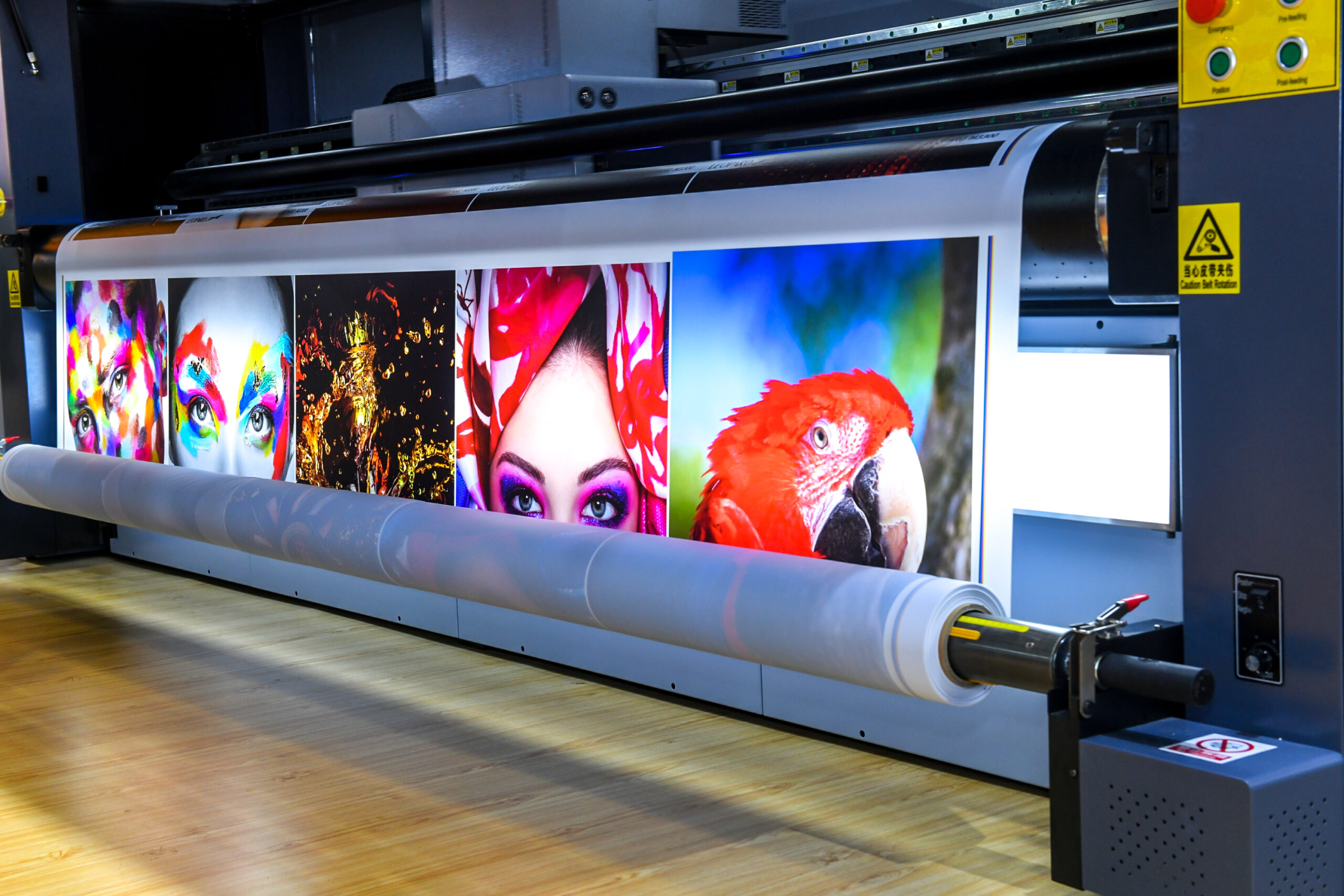

Air shaft safety clamp or double tube support for feeding. Easily switch, convenient feeding and printing without deviation.

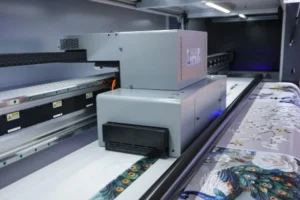

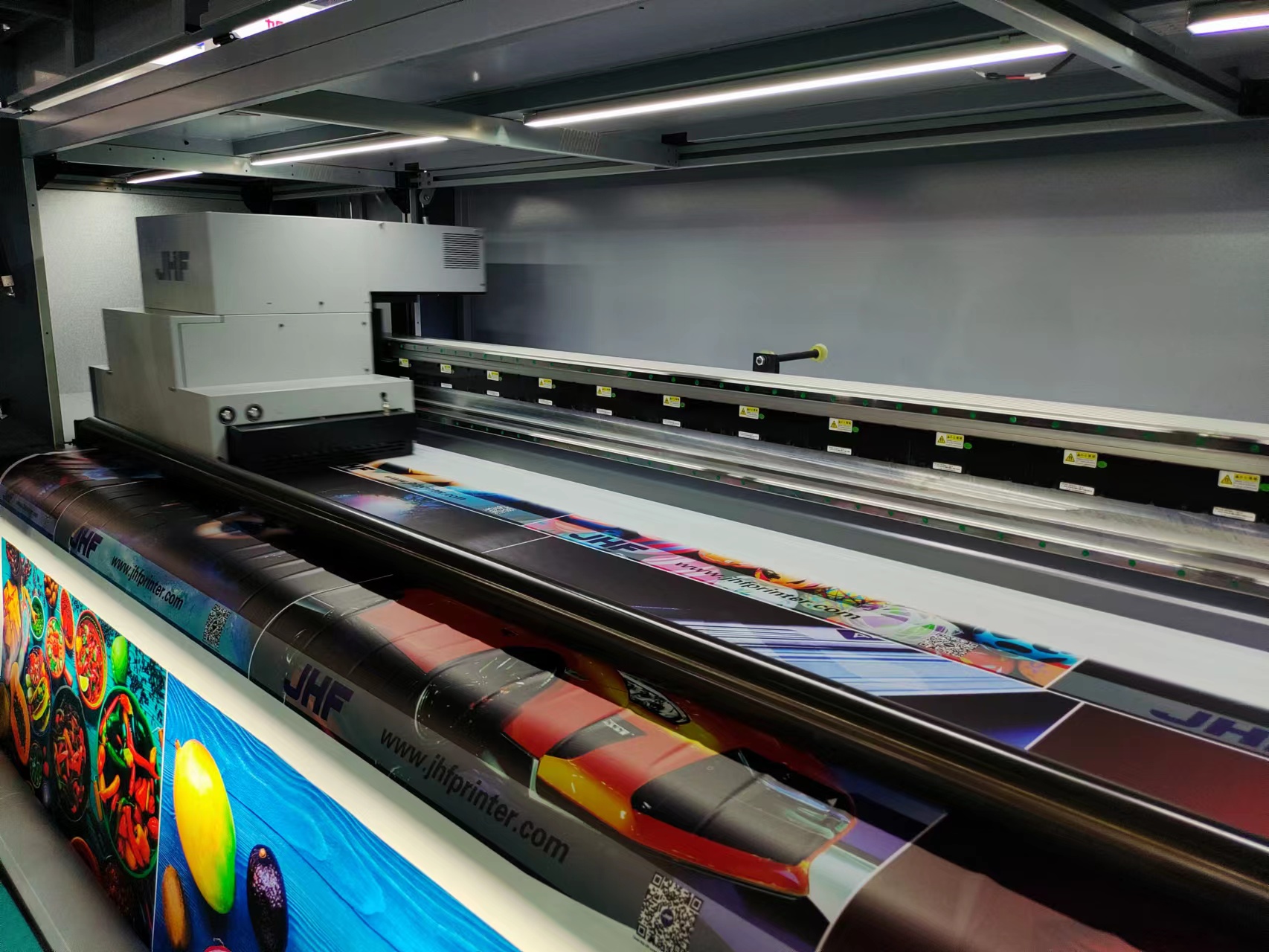

UV curing system Using UV curing system can effectively reduce energy consumption, be more green and environmental protection, and help sustainable development.
|
 |
 |

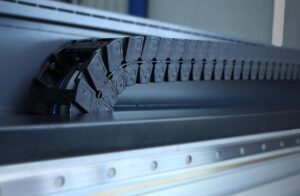

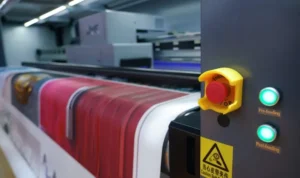

Motion failure solution
Using safe and reliable towline solution to effectively prevent vibration.
Ink Supply System Stable sub ink tank temperature control system to ensure consistent ink properties in different environments. The whole machine adopts high-precision filter to ensure the quality of ink supply. A complete ink system is a powerful driving force to achieve stable and lasting output.
|
| Stable adsorption
The platform adopts constant pressure control technology to ensure stable adsorption of materials and printing accuracy. The printing adopts double pressing rollers and positioning device to make the positioning accurate.
Color Management Software RIP sofware Caldera or PrintFactory adopted to support many mainstream applications, with simple and convenient operation interface.
|
 |
 |

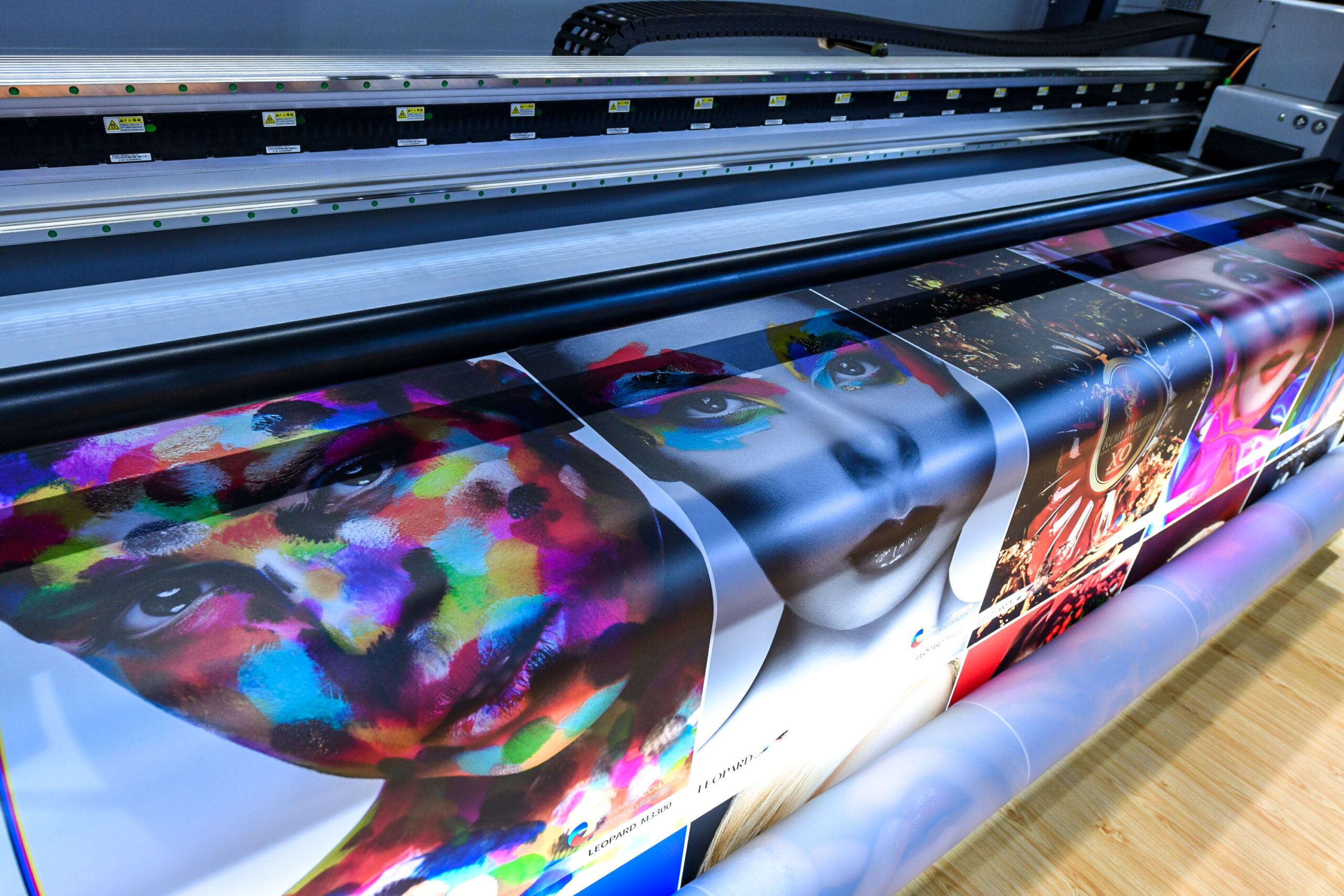

High-speed printing
X-direction adopts high-precision metal grating and linear motor to ensure high-speed and stable movement of printhead; high quality rubber belt in Y-direction to ensure accurate stepping without deviation, and mesh-like fringes were eliminated.
|
Technical Specifications
| Product Model | M3300 | |
| Maximum width | 3200mm | |
| Printing mode | Kyocera: 3-row
High-speed mode 300×1800dpi 270m²/h Production mode 600×1200dpi 215m²/h Fine mode 600×1800dpi 155m²/h Ultra-fine mode 1200×1200dpi 120m²/h Kyocera: 2-row High-speed mode 300×1800dpi 195m²/h Production mode 600×1200dpi 155m²/h Fine mode 600×1800dpi 110m²/h Ultra-fine mode 1200×1200dpi 85m²/h |
Konica:
High-speed mode 363×1080dpi 245m²/h; Production mode 726×720dpi 200m²/h; Fine mode 726×1080dpi 140m²/h; Ultra-fine mode 726×1440dpi 110m²/h |
| Ink type | UV ink | |
| Ink color | C, M, Y, K, Lc, Lm, W | |
| Material thickness | ≤50mm | |
| RIP software | Caldera | |
| Control software | JHF Printer | |
| Environmental requirements | Temperature 18~28℃, humidity 30%~70% | |
| Machine power supply | Three-phase 380V/11.5KW | |
| Machine size | Length 6300mm × Width 1750mm × Height 1720mm | |
| Machine weight | 1950kg | |
Video
Related products
-
Hybrid UV LED
Yotta UV Hybrid
A machine with two printing functions: printing flat materials and rolls.
Printheads
- Kyocera KJ4A (Industrial 4pl and 635 × 2400dpi print heads. Two color head)
- Ricoh Gen6 (Industrial print head 5pl and 600 × 2400dpi. Two color head)
-
Hybrid UV LED

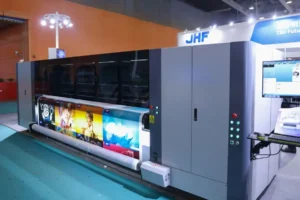

JHF M5300 Hybrid UV Printer
