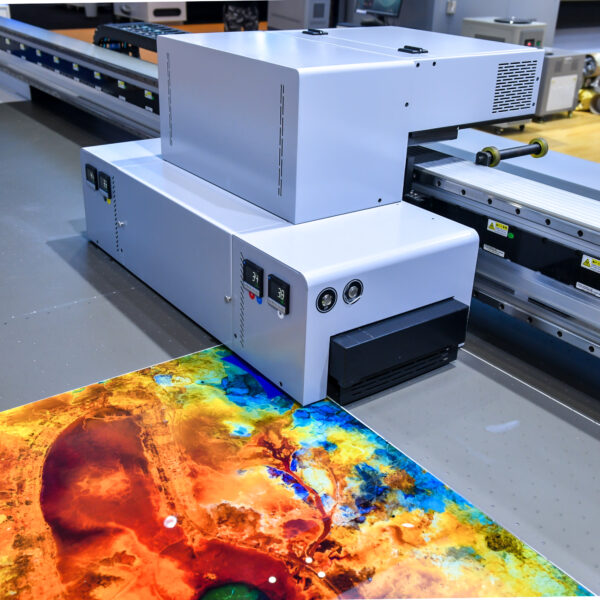

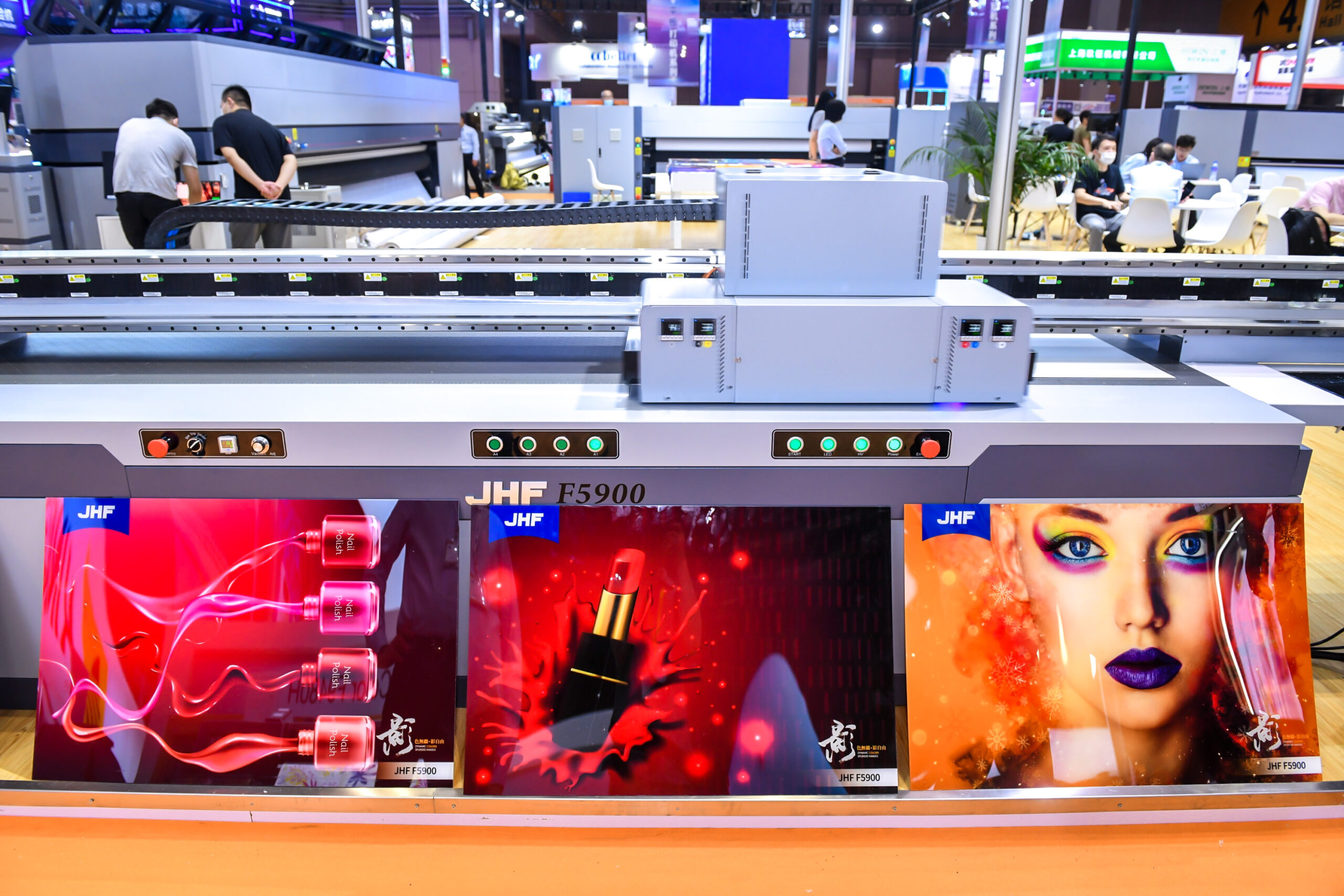

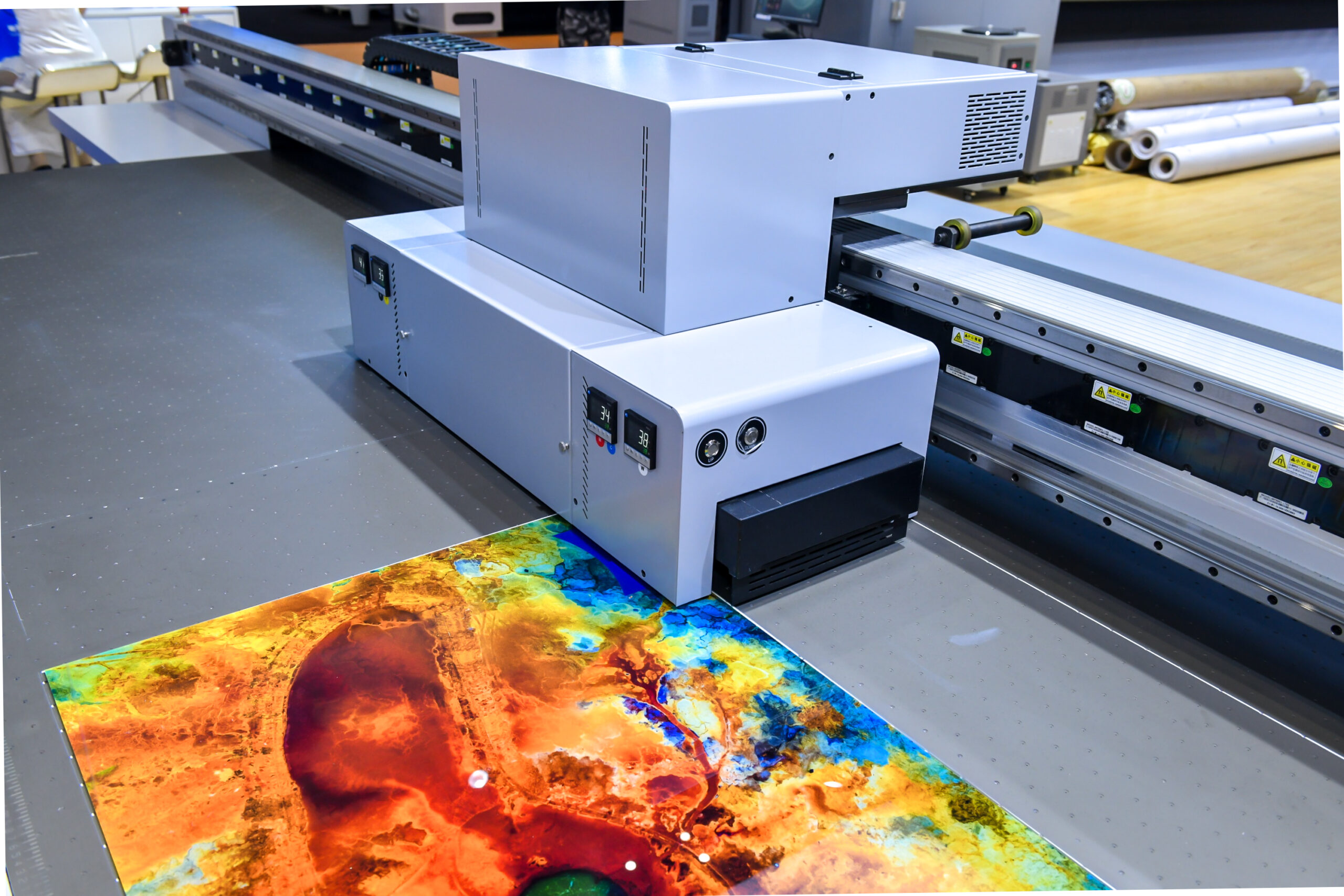

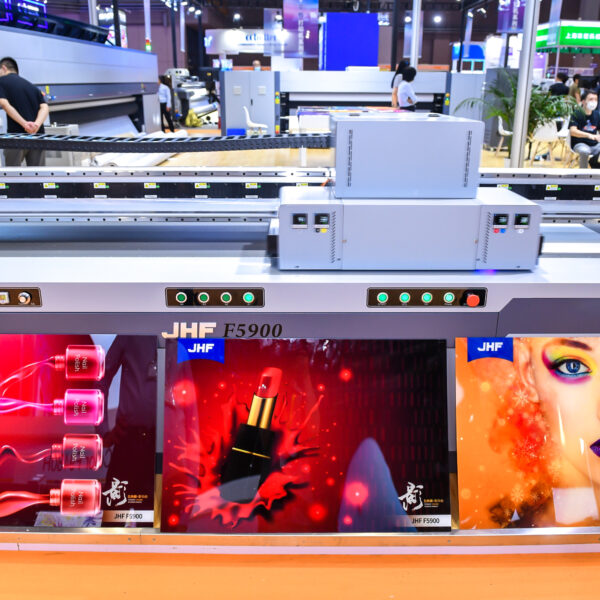

JHF F5900 Flatbed UV Printer
JHF released a Ultra-Wide flatbed industrial printer with optional industrial-grade head, F5900. delivers multiple layers printing with white or varnish. In addition, its variable ink droplet technology ensures that stunning images can be printed on a variety of media with high speed. F5900 covers wide application fields, including sheet metal processing, architectural ceramics, decorative flooring, packaging paperboard and others. And it realizes the instant delivery of industrial production from customized design to terminal products.
Multi Customized Configurations on Printing
F5900 offers you different configurations on white and varnish as you need with superb adhesion, abrasion resistance and high brightness.
Decreased Compressed Air by 90%
Its negative pressure controlling device reduces the use of compressed air for more than 90%, improving the service life of the air compressor effectively.
Unique Sub-tank Controlling Technology
It prevents the ink leakage in case of sudden outage.
Tri-Negative Pressure Controlling System
It is respectively for white ink, color ink and varnish ink to guarantee the fluidity of every single color of ink and prolong the lifespan of head from clogging and sediment.
Separate Vacuum Absorption Table
F5900 owns 8 separate absorption zones on its vacuum table, in which each zone can be freely controlled based on the size of the substrate, thereby reducing energy consumption.
Multi Layers Printing
Multi-layers with white and varnish can be printed at the same time, right now we can support 5 layers printing.
Description
| Visual positioning feature
Say goodbye to complicated operations with one-click matching for high-efficiency production. Materials can be placed randomly for precise identification of printing positions, making batch printing more efficient. Compatible with a variety of materials, production efficiency is doubled. |
 |
 |
Auto Height Adjustment
Fully automatic carriage lifing system and customized motor ensure the precise positioning control of the whole platform, which meet printing demand of dierent heights at any point. |
| Accurate Stepping and Spot
Installed with dual servo motors for Y-axis and linear-driven motor for X-axis, the misalignment in front and rear sides can be detected, improving the stepping accuracy as well as the table accuracy. |
 |
 |
Anti-Collision Device
The carriage is equipped with anti-crash media detectors. When the sensor detects the obstructions on the vacuum table, the printer will stop the carriage emergently to prevent damage to the heads and protect personal safety as well. |
Technical Specifications
| Product Model | F5900 | ||
| Maximum width | 3200mm x 2000mm | ||
| Printing mode | Ricoh:
Production mode 720×600dpi 56m²/h; Fine mode 720×900dpi 43m²/h; Ultra-fine mode 720×1200dpi 36m²/h |
Konica:
High-speed mode 363×1080dpi 195㎡/h; Production mode 726×720dpi 155㎡/h; Fine mode 726×1080dpi 110㎡/h; Ultra-fine mode 726×1440dpi 85㎡/h |
Kyocera:
High-speed mode 300×1800dpi 195㎡/h; Production mode 600×1200dpi 155㎡/h; Fine mode 600×1800dpi 110㎡/h; Ultra-fine mode 1200×1200dpi 85㎡/h |
| Ink type | UV ink | ||
| Ink color | C,M,Y,K,Lc,Lm,W,V | ||
| Material thickness | ≤120mm | ||
| Platform load-bearing capacity | 50 kg/m² (uniformly distributed load) | ||
| RIP software | Caldera | ||
| Control software | JHF Printer | ||
| Environmental requirements | Temperature 18~28℃, humidity 30%~70% | ||
| air pressure parameters | ≥8kg/cm² | ||
| Machine power supply | Three-phase 380V/11.5KW | ||
| Machine size | 5250mm (L) × 2650mm (W) × 1500mm (H) | ||
| Machine weight | 1650kg | ||
